Product Description

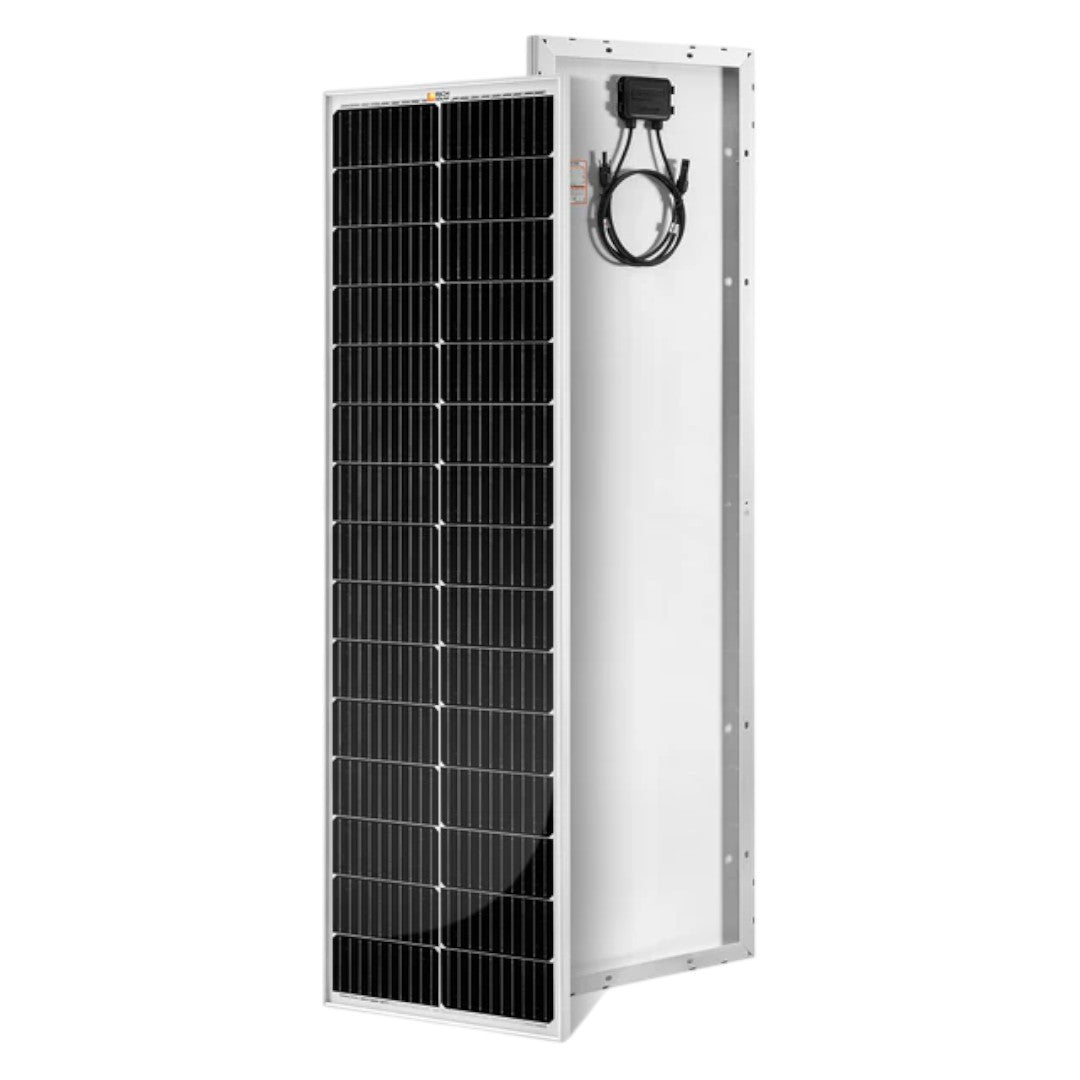

The MEGA 100 SLIM SLX is a compact 100-watt, 12V slim solar panel designed for off-grid and mobile solar applications. Its narrow panel design makes it suitable for campers, overlanders, boats, and other setups where space is limited. Built with tempered glass, aluminum, and monocrystalline silicon, this panel features 10-busbar monocrystalline cells, up to 22.6% efficiency, and a durable anodized aluminum frame for reliable outdoor use.

Features

  • 10-busbar monocrystalline cells with up to 22.6% efficiency
  • 30-cell configuration delivers a reliable 100W output
  • 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability
  • Power tolerance 0 to +5W ensures at least the rated output
  • Excellent low-light performance on cloudy days and at dawn/dusk
  • Tested for UV exposure, thermal cycling, humidity freeze, and more
  • PID-resistant and double EL-inspected to prevent microcracks
  • Certified to withstand 2400 Pa wind, 5400 Pa snow load, and 35 mm hail at 97 km/h
  • Ideal for high-end off-grid systems and mobile applications

Installation

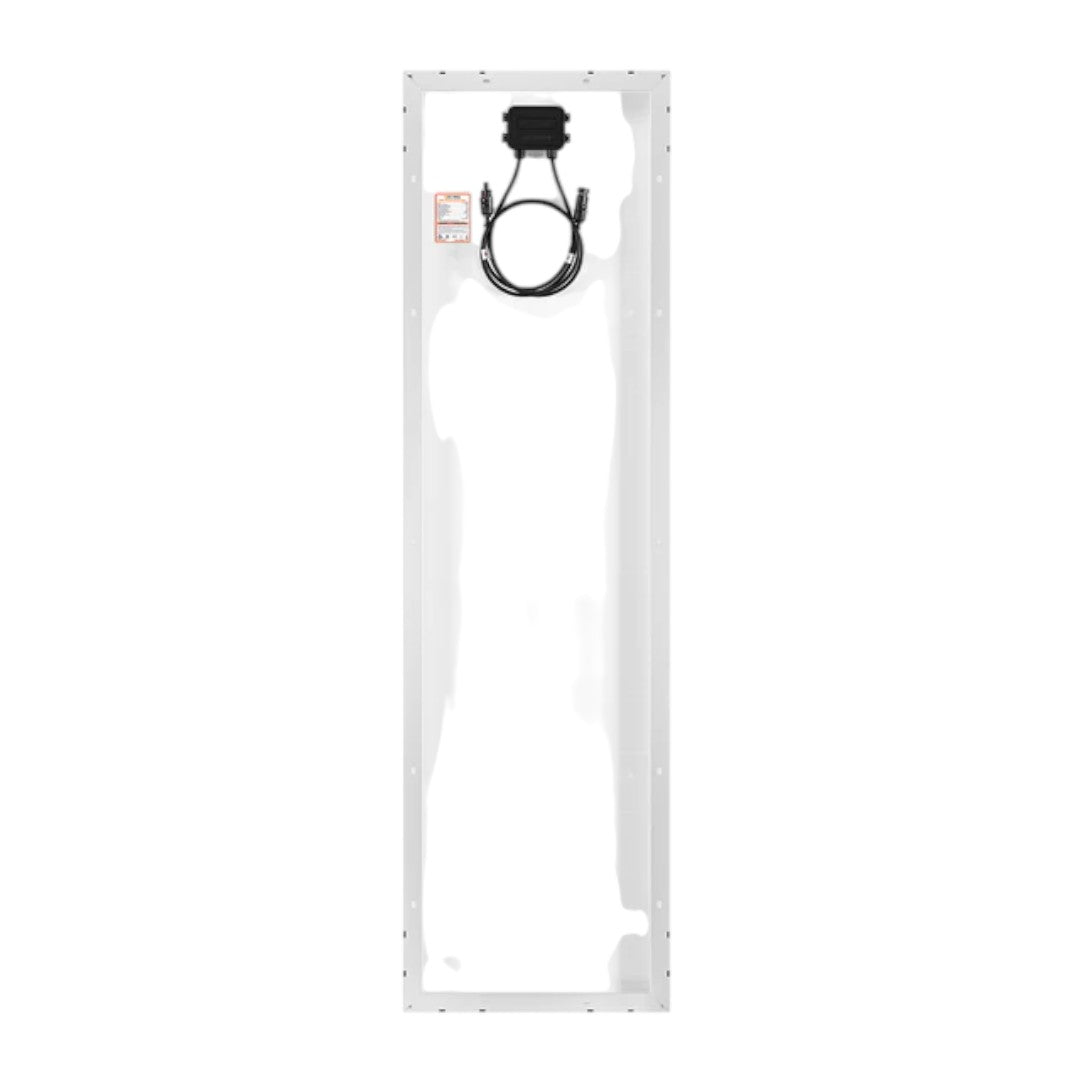

  • Durable anodized aluminum frame, lightweight and corrosion-resistant
  • 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
  • Solar connectors with 3 ft pre-attached cables for quick panel-to-panel connection
  • Compatible with both on-grid and off-grid inverters

Warranty

This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.

View RICH SOLAR Warranty Details

Built-in Components

  • Panel Leads (Pair): 12 AWG, 3 ft each
  • IP67-rated waterproof junction box
  • IP67-rated waterproof solar connectors

Specifications

  • Maximum Power(Pmax): 100W
  • Maximum Power Voltage(Vmp): 17.3V
  • Maximum Power Current(Imp): 5.78A
  • Open Circuit Voltage(Voc): 21.8V
  • Short Circuit Current(Isc): 6.06A
  • Maximum System Voltage(Vmax): 1000VDC
  • Maximum Series Fuse Rating: 15A
  • Weight: 13.1 lb
  • Dimensions: 56.7 x 15.8 x 1.2 in
