Product Description

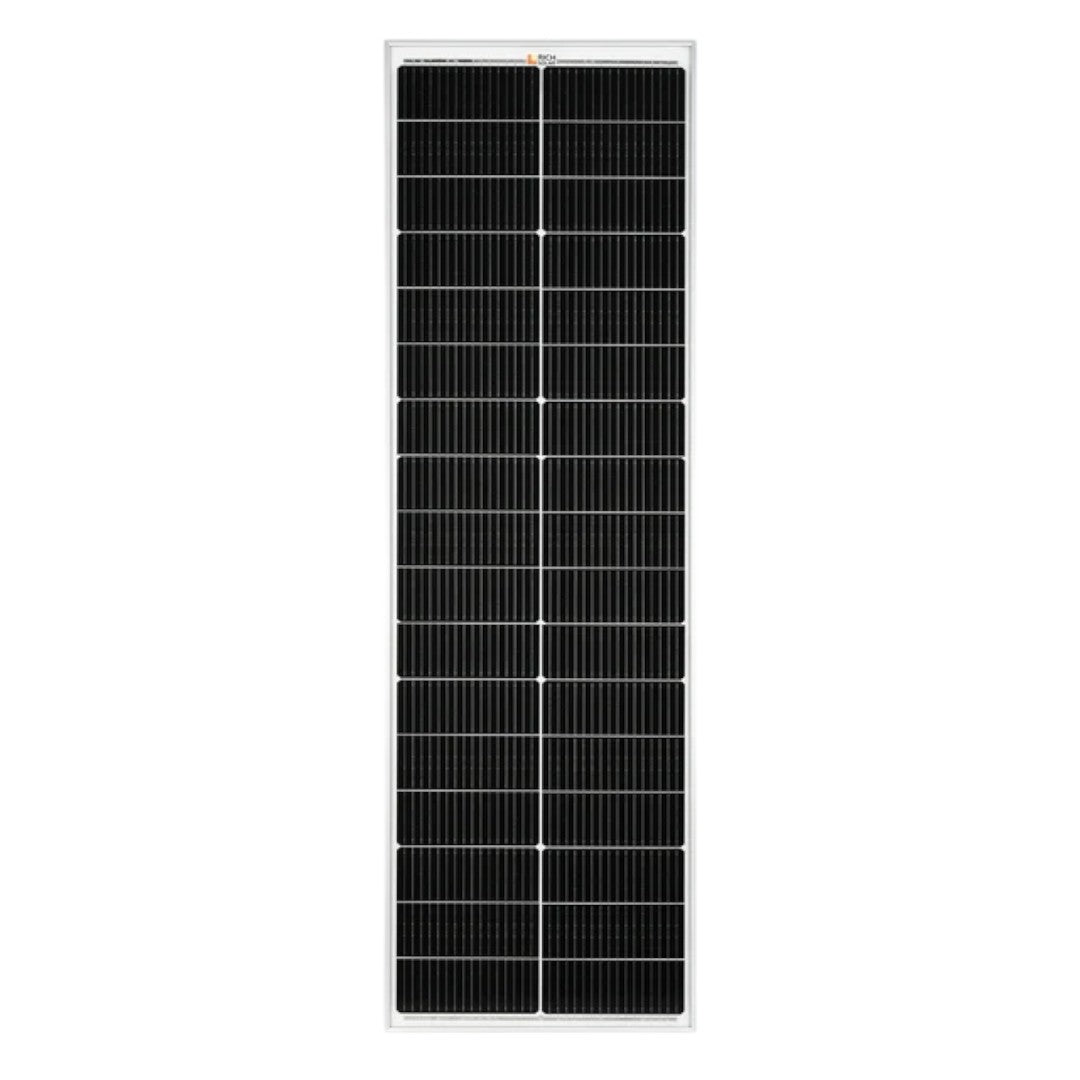

The MEGA 100 SLIM is a 12V 100W slim solar panel designed for compact off-grid power setups. Its narrow, lightweight design helps maximize available installation space on RVs, vans, cabins, boats, and other mobile or off-grid applications.

Built with tempered glass, aluminum, and monocrystalline silicon, this N-Type solar panel delivers efficient power output in a compact 50.0 x 15.7 x 1.2 in size. It includes pre-drilled mounting holes, pre-attached MC4 connectors, and IP67-rated protection for the junction box and solar cables.

Key Feature

  • 100W maximum power output
  • 12V slim solar panel design
  • N-Type TOPCon solar panel
  • Up to 25.1% maximum efficiency
  • Compact size: 50.0 x 15.7 x 1.2 in
  • Lightweight 12.4 lb design
  • Slim rectangular shape for limited installation spaces
  • Pre-drilled holes for easier mounting
  • Pre-attached MC4 connectors
  • 4 ft cables for setup
  • IP67-rated junction box and solar cables
  • Withstands 5400 Pa snow load and 2400 Pa wind load
  • Operating temperature range: -40°F to +185°F
  • 25-year output warranty

Size Fits Various RV Types

  • Slim Design: Slim, rectangular design fits and maximizes roof space on Class B and Class A RVs, trailers, fifth wheels, and boats.
  • Lightweight: Weighing only 12.4 lb, easy to carry and quick to install.
  • Narrow Panel Upgrade: Same power output with a 11.8% smaller footprint compared to MEGA 100 SLIM SLX.

High-Performance N-Type TOPCon Solar

  • High Efficiency: N-Type TOPCon cells provide higher energy conversion than standard panels
  • Stable Performance: Delivers reliable power even in low light or extreme temperatures.
  • Durable & Long-Lasting: Resistant to light-induced degradation, ensuring more energy over the panel’s lifespan.

Built To Withstand Harsh Climates

  • IP67 Rated: Junction box and solar cables are fully protected against dust and water.
  • High Load Resistance: Withstands 5400Pa snow load and 2400Pa wind load.
  • Wide Temperature Range: Operates reliably from -40°F to +185°F for consistent output in extreme climates

Hassle-Free Installation

  • Pre-Drilled Holes: Simplifies mounting on roofs or frames.
  • Pre-Attached MC4 Connectors: Comes with 4ft cables for quick, hassle-free setup.
  • Slim and lightweight design: 50.0 × 15.7 × 1.2 in, 12.4 lb for easier handling and installation

Specifications

Maximum Power (Pmax): 100W
Maximum Power Voltage (Vmp): 19.6V
Maximum Power Current (Imp): 5.01A
Open Circuit Voltage (Voc): 23.6V
Short Circuit Current (Isc): 5.38A
Maximum System Voltage (Vmax): 1000 VDC
Temperature Range: -40°F ~ +185°F
Weight: 12.4 lb

Dimensions:

Downloads

50.0 × 15.7 × 1.2 in

Warranty: This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.
