Product Description

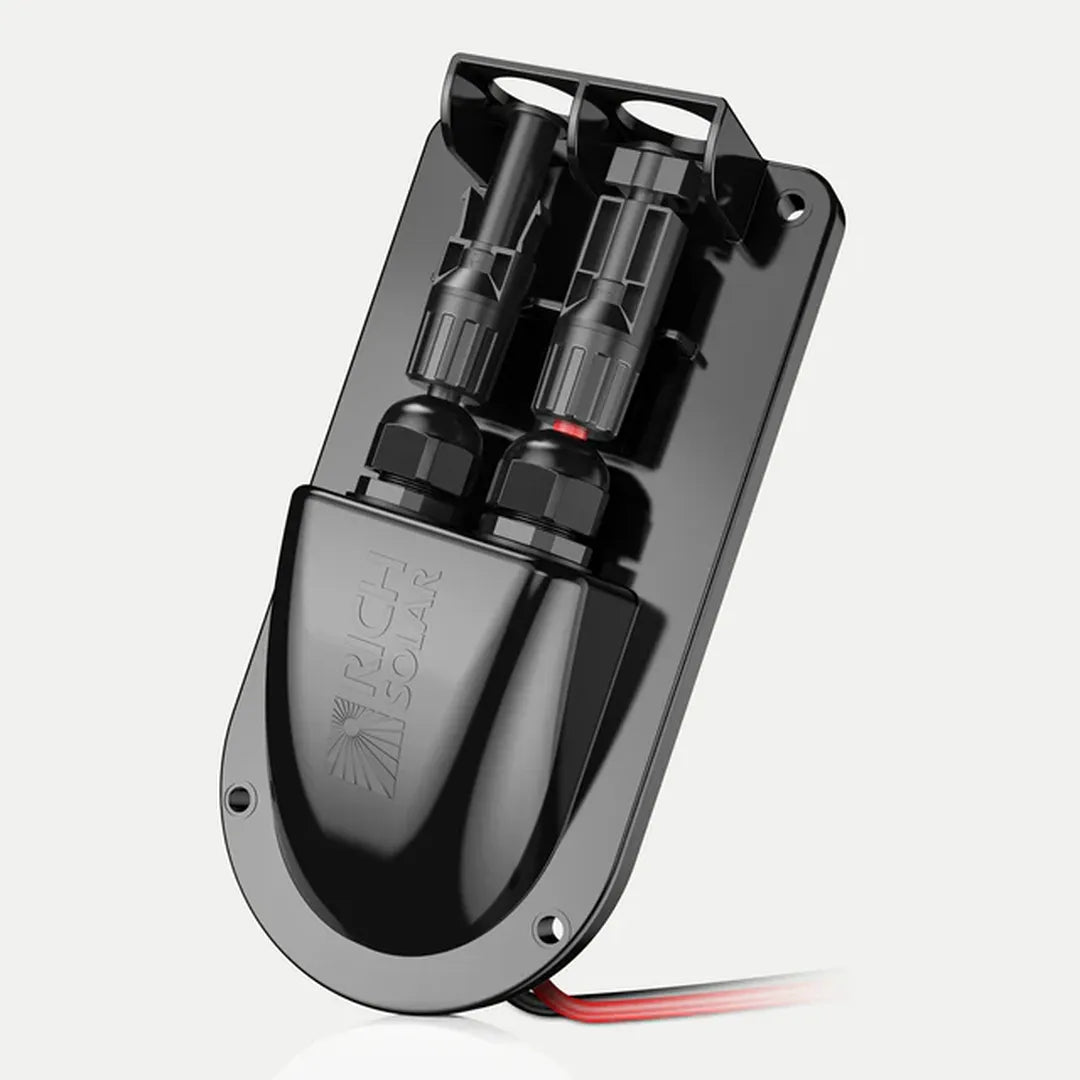

The RICH SOLAR Cable Entry Plate is a compact, low-profile cable entry solution designed for RVs, boats, cabins, and off-grid solar systems. It features a flame-retardant polypropylene housing with pre-assembled UL1015 10AWG red and black tin-plated copper wires for clean and reliable solar cable management.

Built for outdoor use, this cable entry plate includes a PA6 PG9 head with IP68 waterproof and dustproof sealing. It supports up to 42A maximum current and 30A continuous current, helping simplify rooftop cable routing while maintaining a secure, weather-resistant setup.

Key Features

    Durable & Weatherproof

    • Flame-retardant PP housing for long-lasting outdoor use
    • Operates smoothly in extreme temps: -40°F to 185°F
    • Perfect for RVs, boats, cabins, and off-grid solar systems

    High Current Capacity

    • Supports 42A max / 30A continuous load
    • Pre-assembled UL1015, 10AWG tin-plated copper wires for excellent conductivity
    • PVC insulation with VW-1 fire rating for added safety

    Reliable PG9 Head

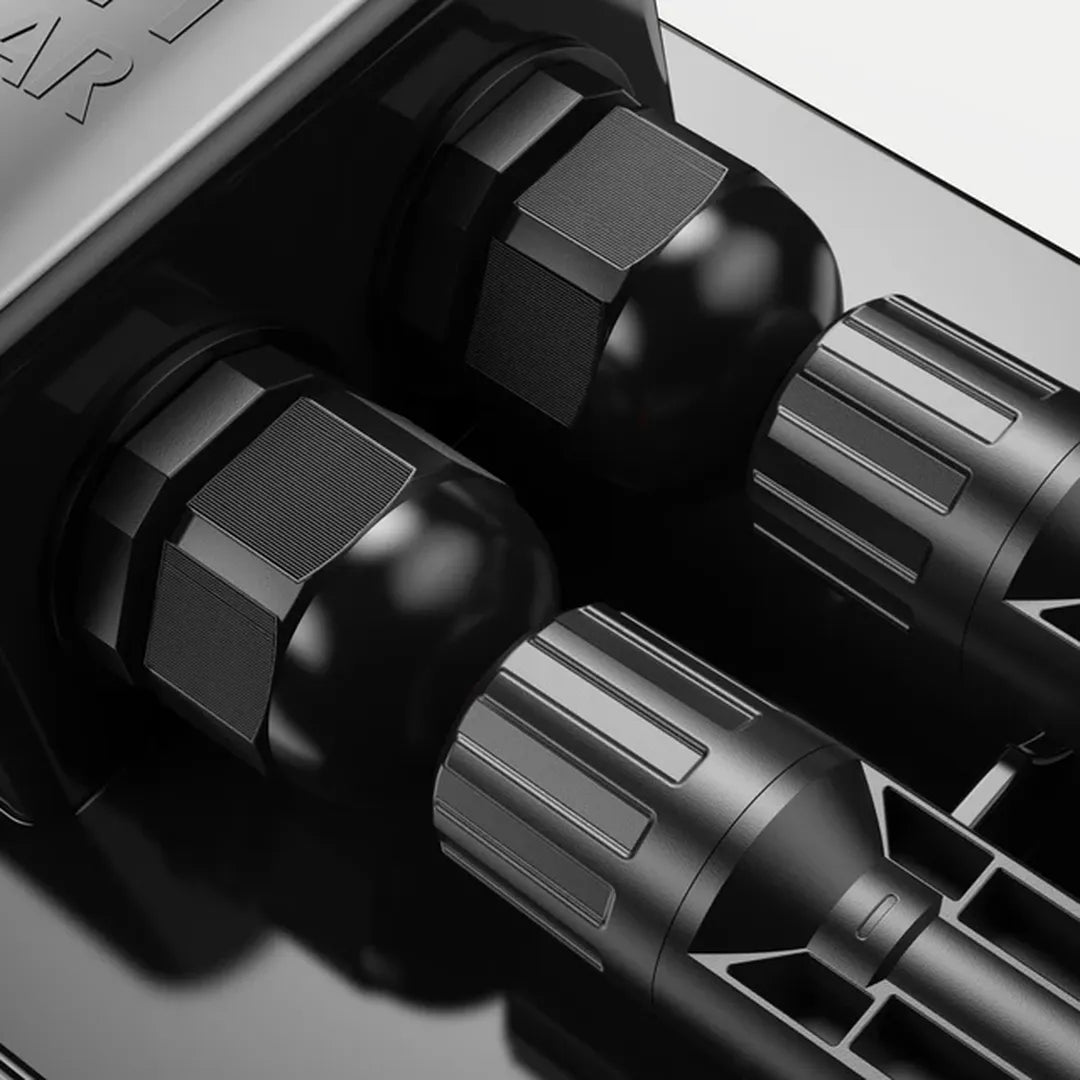

    • PA6 PG9 head with IP68 waterproof & dustproof sealing
    • UL94V-2 flame-retardant, CE certified for reliability

    Quick & Easy Installation

    • Compact, low-profile rooftop mount design
    • Secure with adhesive/sealant and screws (hardware not included)
    • Simplifies cable management for faster, cleaner setup

    Specifications

    General

    • Model: RS-G02
    • Product Size (L x W x H): 7.2 x 3.8 x 2.0 in
    • Weight: 0.34lb
    • Junction Box Material: Polypropylene (PP)
    • Junction Box Flame Retardant: Yes
    • Color: Black
    • Operating Temperature Range: -40℃ to 85℃(-40°F t0 185°F)

    Electrical Ratings

    • Maximum Current:  42A
    • Continuous Current:  30A
    • Maximum Voltage:  600V (Wire Rating)
    • Wire Standard:  UL 1015 10AWG (Red/Black)
    • Wire Conductor:  Tin-Plated Copper
    • Wire Insulation:  PVC (VW-1 Fire Rated)
    • Wire Temperature Range:  -15°C to 105°C (5°F to 221°F)

    PG Head

    • PG Head Specification: RNA-PG9
    • PG Head Material: PA6
    • PG Waterproof Rating: IP68
    • PG Flame Retardant Rating: UL94V-2 Cerriffed
    • Certification: CE

    MC4 Connector

    • Material: PC
    • Certification: TUV
