Product Description

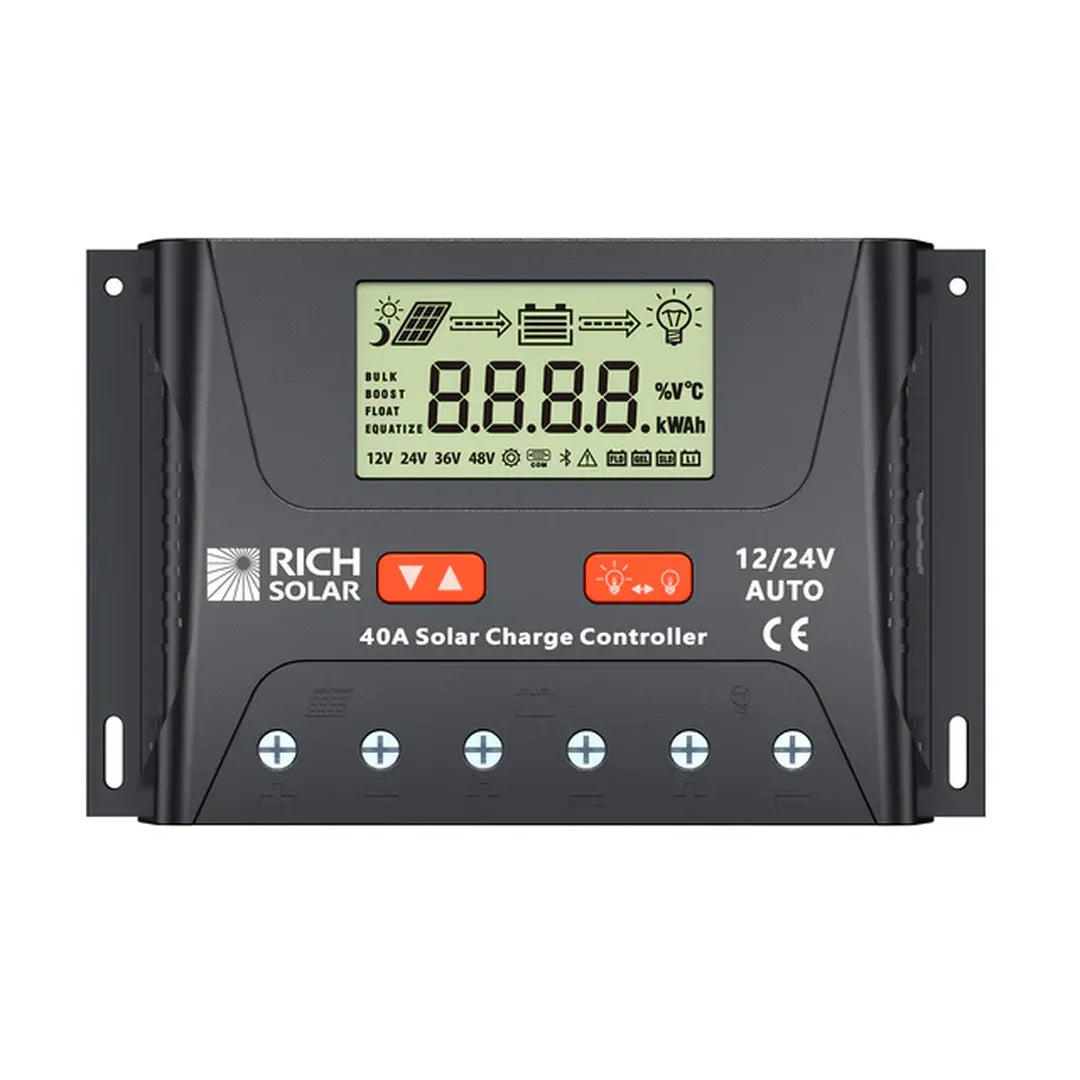

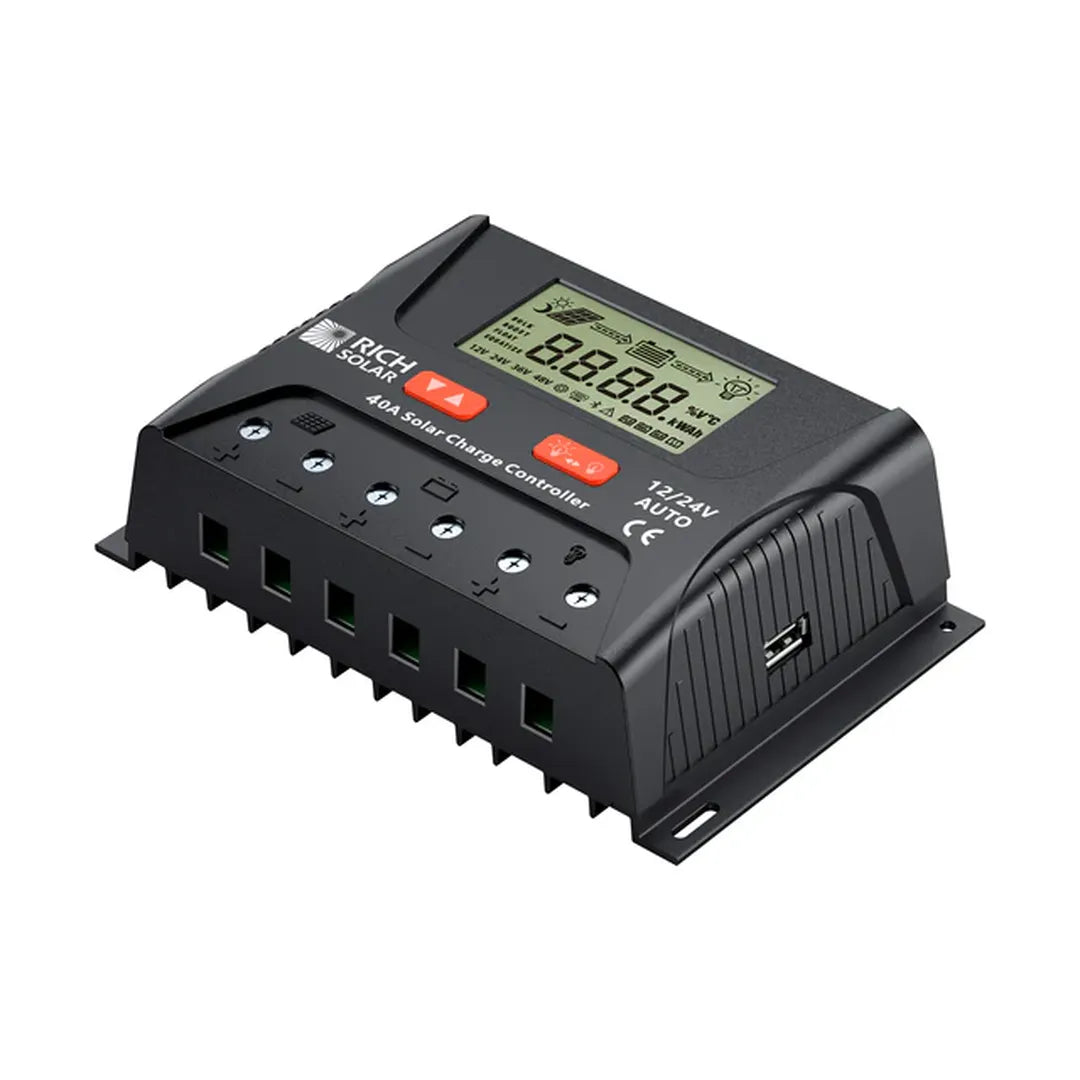

The RICH SOLAR BRAVO LEGEND 40 is a 40 Amp PWM solar charge controller designed for 12V and 24V solar power systems. It supports automatic 12V/24V system recognition and is suitable for RVs, boats, and off-grid systems.

This controller features smart charging management, advanced 3-stage PWM charging, real-time LCD monitoring, and multiple protection functions. It supports Lithium, Sealed, GEL, and Flooded battery types for flexible solar system setup.

Key Features

Smart Charging Management

  • Auto Voltage Detection: Automatic 12V/24V system recognition (manual setup available)
  • Multi-Battery Compatibility: Optimized charging profiles for Sealed, GEL, Flooded, and Lithium battery types
  • Advanced 3-Stage PWM Charging: Boost, Float, and Equalization — prevents sulfation in lead-acid batteries (excludes GEL and Lithium)
  • Temperature Compensation: Automatic voltage adjustment (-3.0mV/°C/2V) based on ambient temperature (excludes Lithium)

Advanced Load Management

  • 5 Operating Modes: Light Control (10-min delay) | Light Control+Timer Control (1–14h) | Manual | Debug | Normal On
  • Comprehensive Protection: Includes overcharge, over-discharge, overload, short-circuit, and reverse polarity protection
  • TVS Lightning Protection: Industrial-grade surge protection for harsh environments

User Interface & Durability

  • Interactive LCD Display: Dot-matrix screen with real-time system monitoring
  • Dual-Button Control: Intuitive parameter adjustment with memory function
  • Rugged Construction: IP30-rated enclosure with wide operating temperature range

Specifications

  • Rated Current: 40A
  • System Voltage: Auto recognition: 12V/24V (Manual setup optional)
  • Rated Power: 600W @12V / 1200W @24V
  • Max. Solar Input Voltage: < 55V
  • Max. Battery Voltage: < 34V
  • No-load Loss: <13mA @12V / <15mA @24V
  • Battery Compatibility: Lithium / Sealed / GEL / Flooded
  • Operating Temperature: –13°F to +131°F (–25°C to +55°C)
  • Protection Rating: IP30 (Dust/Splash Resistant)
  • Dimensions: 164×103×47 mm (6.46×4.07×1.85 in)
  • Net Weight: 0.39 kg (0.86 lb)

Downloads

Specifications

Manual

Warranty

This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.

View RICH SOLAR Warranty Details
