Product Description

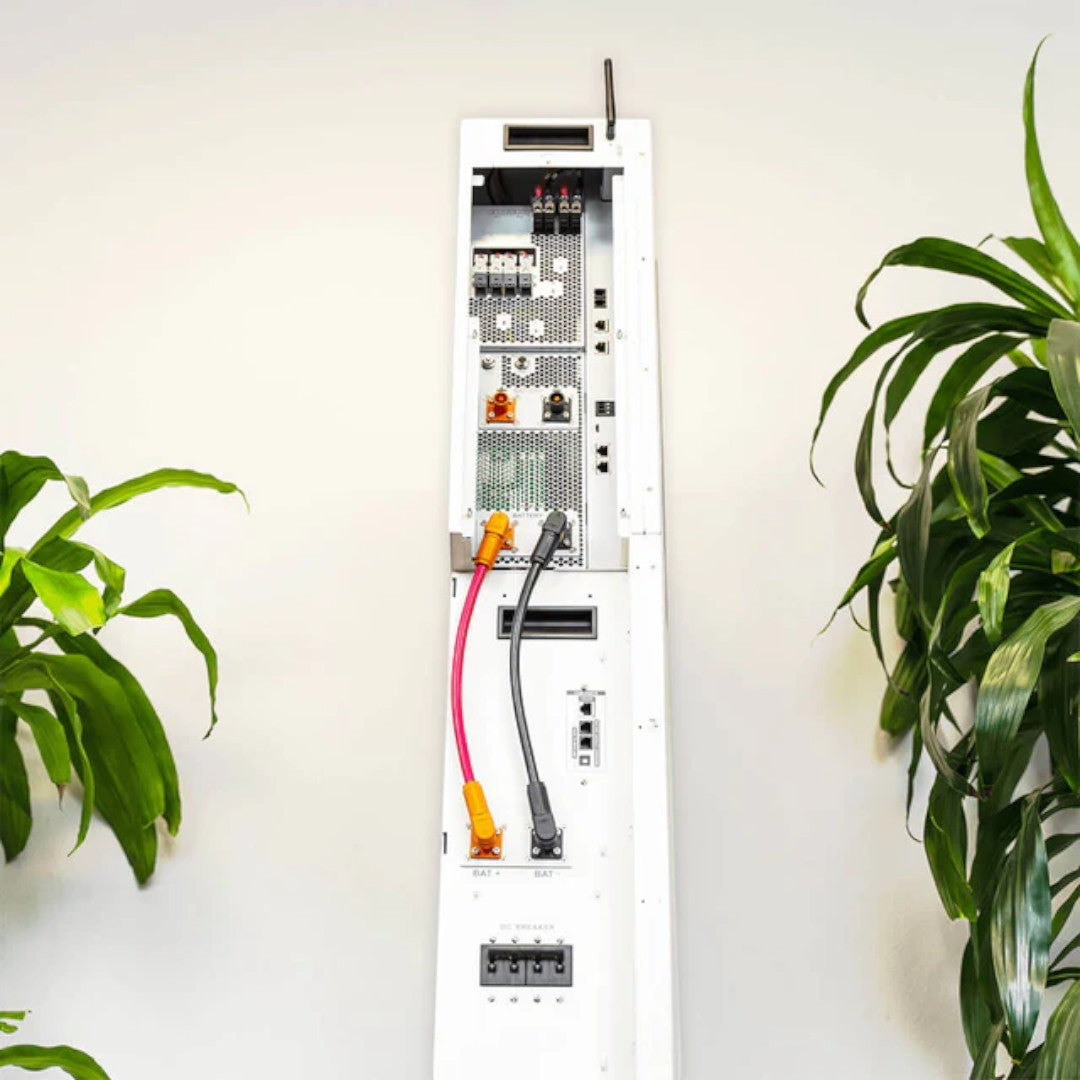

The RICH SOLAR All-in-One Energy Storage System is designed to provide clean and reliable electricity for off-grid solar applications. It combines an inverter, battery, and charge controller into one compact system, helping simplify solar power generation and energy storage in a single unit.

This system features pure sine wave output, programmable supply priority for PV, battery, or grid, user-adjustable battery charging current, and built-in 2 MPPT trackers. It also supports app monitoring for real-time status display and parameter control through Android and iOS.

Key Feature

  • All-in-one system with controller, inverter, and battery
  • Off-grid application
  • Pure sine wave output
  • 8000W maximum PV input power
  • 6500W rated output power
  • 6500W maximum charging power
  • Built-in 2 MPPT trackers
  • AC/Solar charger up to 120A
  • Programmable supply priority for PV, battery, or grid
  • User-adjustable battery charging current
  • Battery independent design
  • Compatible with utility and generator
  • Monitoring app for Android and iOS
  • Multiple communication options: USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi
  • 5120Wh battery capacity
  • 51.2VDC nominal battery voltage
  • BMS and breaker protection
  • Scalable Li-Ion battery expansion

Power & Performance Features

  • Pure sine wave output
  • Off-Grid application
  • Programmable supply priority for PV, Battery, or Grid
  • User-adjustable battery charging current
  • Battery independent design

Smart Technology & Connectivity

  • Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi
  • Monitoring APP (Android and iOS) for real-time status display and parameter control
  • Built-in 2 MPPT trackers and AC/Solar charger up to 120A
  • Compatible with utility and generator
  • Scalable Li-Ion battery expansion

Specifications

Battery Info

  • Model: RS-A10

  • Maximum PV Input Power: 8000W

  • Rated Output Power: 6500W

  • Maximum Charging Power: 6500W

PV Input (DC)

  • MPPT Range @ Operating Voltage: 90 ~ 230 VDC

  • Maximum PV Array Open Circuit Voltage: 250 VDC

  • Maximum Solar Charge Current: 120A

  • Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18A

AC Input

  • Acceptable Input Voltage Range:

    90–140 VAC (For Computers)

    80–140 VAC (For Home Appliances)

  • Maximum AC Input Current: 60A

Battery Mode Output

  • Nominal Output Voltage: 120 VAC

  • Maximum Conversion Efficiency (DC/AC): 93%

Battery

  • Nominal DC Voltage: 48 VDC

  • Maximum Charging Current: 120A

  • Dimension (D × W × H): 8.4" × 24.4" × 19.7"

  • Net Weight: 99 lb

  • Capacity: 5120Wh

  • Nominal Voltage: 51.2VDC

  • Full Charge Voltage (FC): 56V

  • Full Discharge Voltage (FD): 42V

  • Typical Capacity: 100Ah

  • Max Continuous Discharging Current: 120A

  • Max Discharging Current: 192A at 1 min

  • Protection: BMS, Breaker

  • Float Charge Voltage: 52.5V

  • Charge Current: 20A (0.2C)

  • Maximum Charge Current: 50A (0.5C)

  • Standard Charge Method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C

  • Inner Resistance: ≤20mΩ

All In One System Physical

  • System Dimension (D × W × H): 19.7" × 26" × 49.2"

  • Net Weight: 287 lb

Standard

  • Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

Downloads

Manual

Warranty: This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.

View RICH SOLAR Warranty Details
