Product Description
The RICH SOLAR 8000W 48V-120/240VAC Solar Kit is a complete off-grid solar power package designed with solar panels, inverters, lithium batteries, busbars, extension cables, disconnects, and battery cables. It includes 20 MEGA 410W solar panels, 2 NOVA 6500S 48V off-grid solar inverters, and 8 ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries.
This kit supports residential, agricultural, commercial, off-grid, and mobile solar applications. The MEGA 410 panels feature an anodized aluminum frame and anti-reflective coated tempered glass, while the ALPHA 5 PRO batteries include a Battery Management System for protection and system monitoring support.

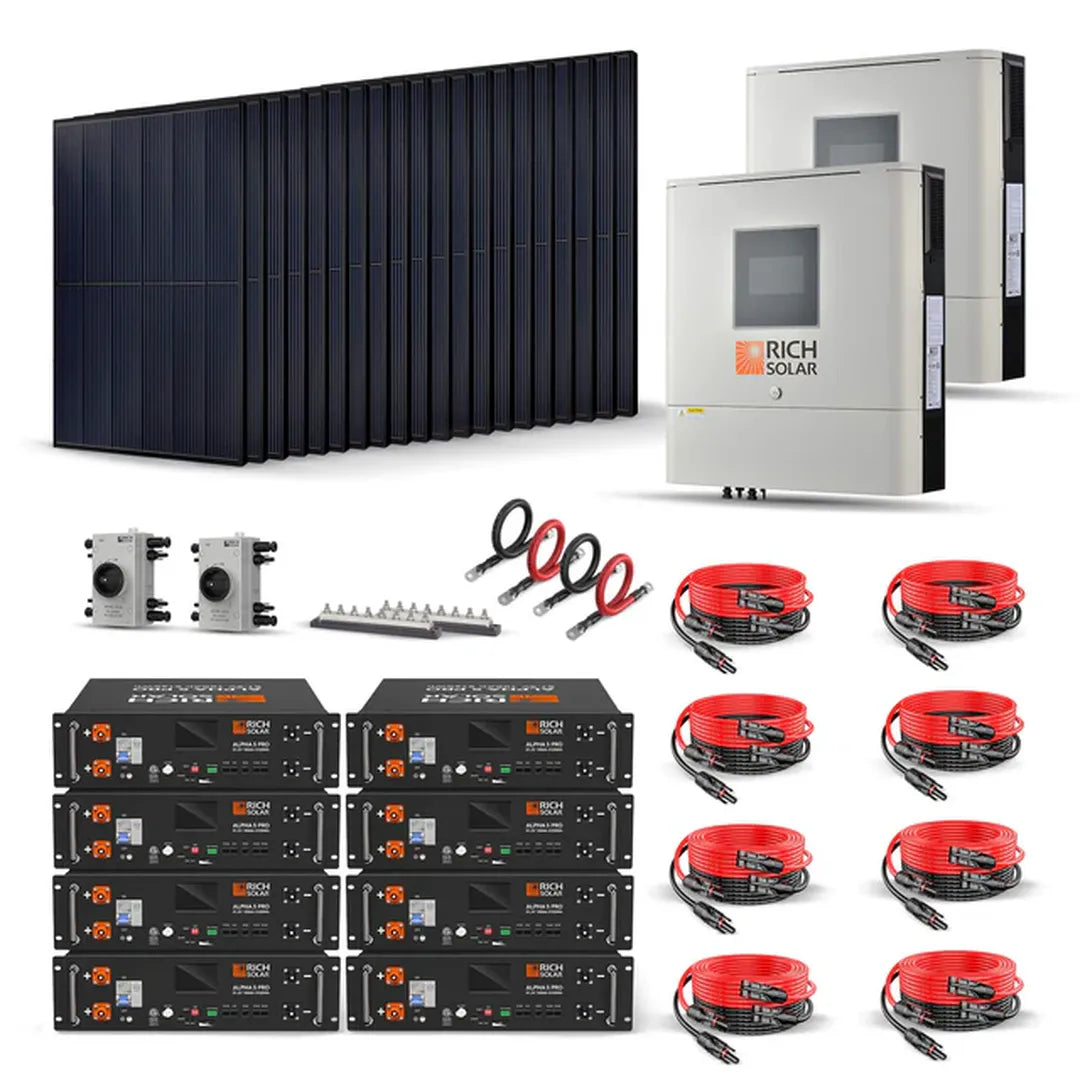

Kit Includes
- 2 x 6500W 48V Off-grid Solar Inverters (RS-H6548S)
- 20 x MEGA 410W Solar Panels (RS-M410)
- 8 x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batteries (RS-B5121P)
- 2 x Busbars 600 AMP
- 4 x 10AWG 30FT Extension Cable (RS-30102)
- 4 x 10AWG 10FT Extension Cable (RS-10102)
- 2 x PV DC Quick Disconnect (RS-i4)
- 2 x 4/0 AWG Battery Cables 5FT (RS-4/0A5F3)
MEGA 410
410 Watt Solar Panels
The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.
No. Of Panels: 20 x MEGA 410 Watt Solar Panels
Wattage Per Panel: 410W
Total Wattage Of Panels: 8200W
Features
- 10-busbar solar cell configuration
- Mono PERC Technology
- Lightweight anodized aluminum frame
- High Transmission, AR (anti-reflective) Coated Tempered Glass
- Plug-and-play junction box
- Industry-standard quick-connect cables work in series or parallel
- Certified to withstand challenging environmental conditions
- Excellent low-light performance on cloudy days, mornings, and evenings
Installation
- Easy installation and handling for various applications (high-end off-grid and mobile applications)
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
- Compatible with on-grid and off-grid inverters
Specifications
Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.3V
Maximum Power Current (Imp): 13.1A
Open Circuit Voltage (Voc): 37.5V
Short Circuit Current (Isc): 13.8A
Maximum System Voltage (Vmax): 1500VDC
Temperature Range: -40°F - 185°F
Max Series Fuse Rating: 25A
Weight: 45.2 lb
Dimensions: 67.8 x 44.7 x 1.2 in
Downloads
Warranty
This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.
View RICH SOLAR Warranty Details
ALPHA 5 PRO
51.2V 100Ah LiFePO4 Battery
No. Of Batteries: 8 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries
Features
- Certification: UL1973, UL9540A, FCC
- 7,000 Deep Cycles Life
- 5120 Watt Hours Energy
- 100A Continuous Charge Current
- Compatible with multiple brands of inverters
- Low maintenance
- Over charging or discharging protection
- Overcurrent & short circuit protection
- Parallel up to 15 Batteries
- Connect in Parallel for Larger Capacity
- With Sophisticated Battery Management System (BMS)
- 10 Years Lifespan
Specifications
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Minimum Capacity: 99.5Ah
Nominal Capacity: 5120Wh
Charging Voltage: 56V
Discharging Cutoff Voltage: 44.8V
Maximum Charging Current: 100A
Continuous Charge Current: 100A
Maximum Discharge Current: 100A
Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
Battery Weight: 99.2 lb
Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H
Server Rack Weight: 196.2 lb
Operation Voltage: 43.2-58.4V
Maximum Charging Current: 100A
Maximum Discharging Current: 100A
Maximum Charge Voltage (CC/CV): 57.6V
Overcharge Protection Voltage (Battery): 58.4V
Over Discharge Protection Voltage (Battery): 43.2V
Communication Ports: RS485/RS232/CAN
Max. Expansion: 15 pcs in parallel
Downloads
Warranty
This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.
View RICH SOLAR Warranty Details
NOVA 6500S
6500 Watt 48 Volt Off-Grid Hybrid Solar Inverter
No. Of Hybrid Solar Inverter: 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverters
Features
- UL Certification
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS)
- Supports USB on-the-go function
- Data log events stored in the inverter
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Adjustable high-power charging current
- Adjustable input voltage range for home appliances and personal computers
- Compatible with Utility Mains or generator input
- Built-in anti-dust kit
- Optional DC output for DC fan, LED bulb, router, etc.
- 6-unit parallel operation capabilities
Specifications
Model: RS-H6548S
Rated Inverter Power: 6500VA/6500W
Parallel Capability: Yes, 6 units
Voltage: 120 VAC
Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto Sensing)
AC Voltage Regulation: 120 VAC ± 5%
Surge Power: 13000VA
Efficiency (Peak): 91%
Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
No Load Power Consumption: <75W
DC Voltage: 12 VDC ± 5%, 100W
Battery Voltage: 48 VDC
Float Charging Voltage: 54 VDC
Overcharge Protection: 66 VDC
Solar Charger Type: MPPT
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 - 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 120A
Maximum Charge Current: 120A
Dimension (D x W x H): 6.2 x 19.8 x 20.9 in
Net Weight: 44 lb
Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 14°F to 104°F
Storage Temperature: 5°F to 140°F
Compliance Safety: UL
Downloads
Warranty
This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.
Why Choose RICH SOLAR
RICH SOLAR has been a leader in the off-grid solar industry since 2005, with a focus on bringing the world's best solar products to market while providing world-class customer service.
