Product Description
The RICH SOLAR 1600 Watt Solar Kit is designed for off-grid solar power applications for RVs, boats, trailers, cabins, and other mobile or remote setups. It includes eight 200W monocrystalline solar panels with 18 busbars, a 60A MPPT solar charge controller, solar and battery cables, mounting Z brackets, an inline fuse holder with fuse, and Y branch parallel adapters.
The MEGA 200 solar panels are built with high-transmission anti-reflective coated tempered glass and an anodized aluminum frame. The included 60A MPPT charge controller automatically detects 12V, 24V, 36V, and 48V DC system voltages and supports sealed, gel, flooded, and lithium deep cycle batteries.

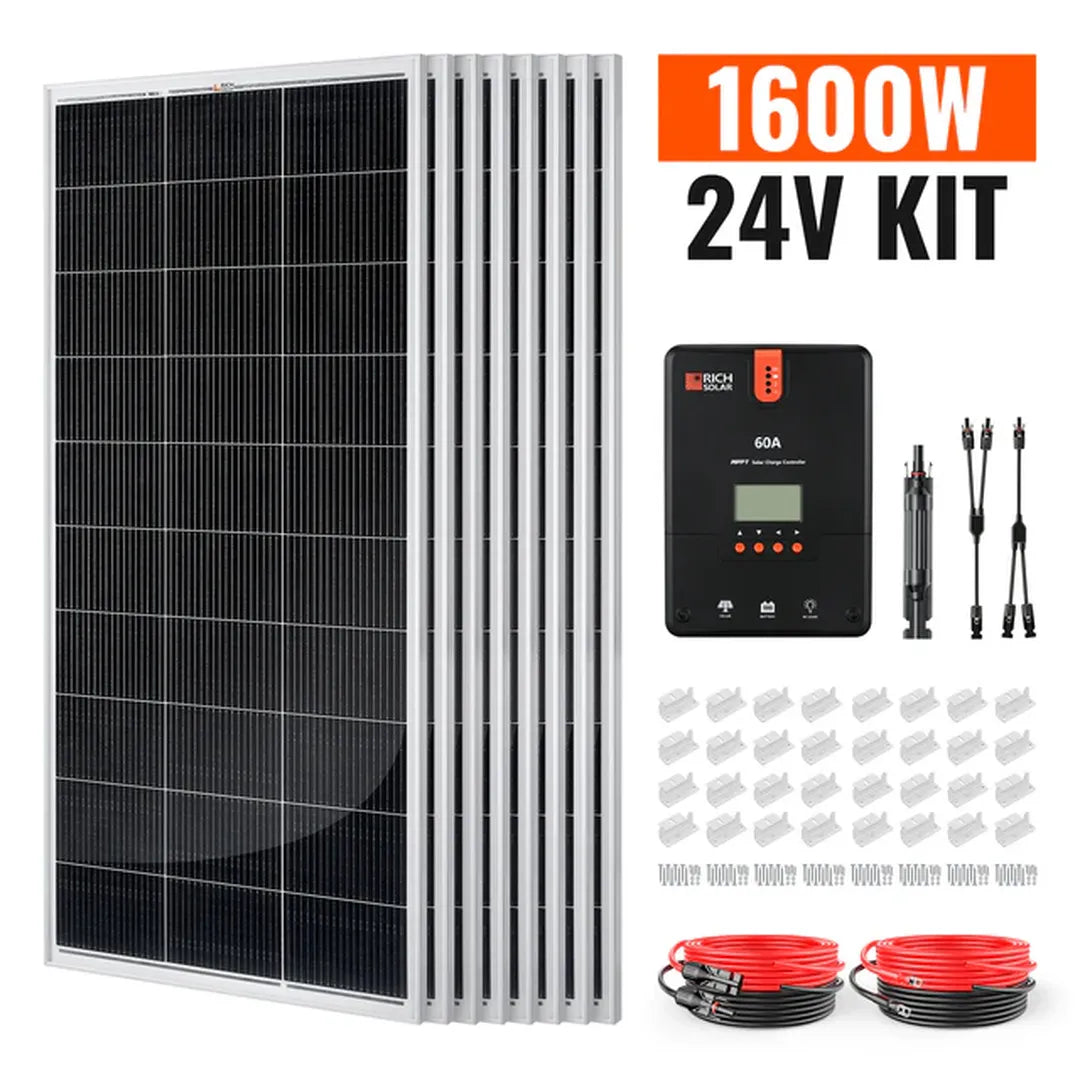

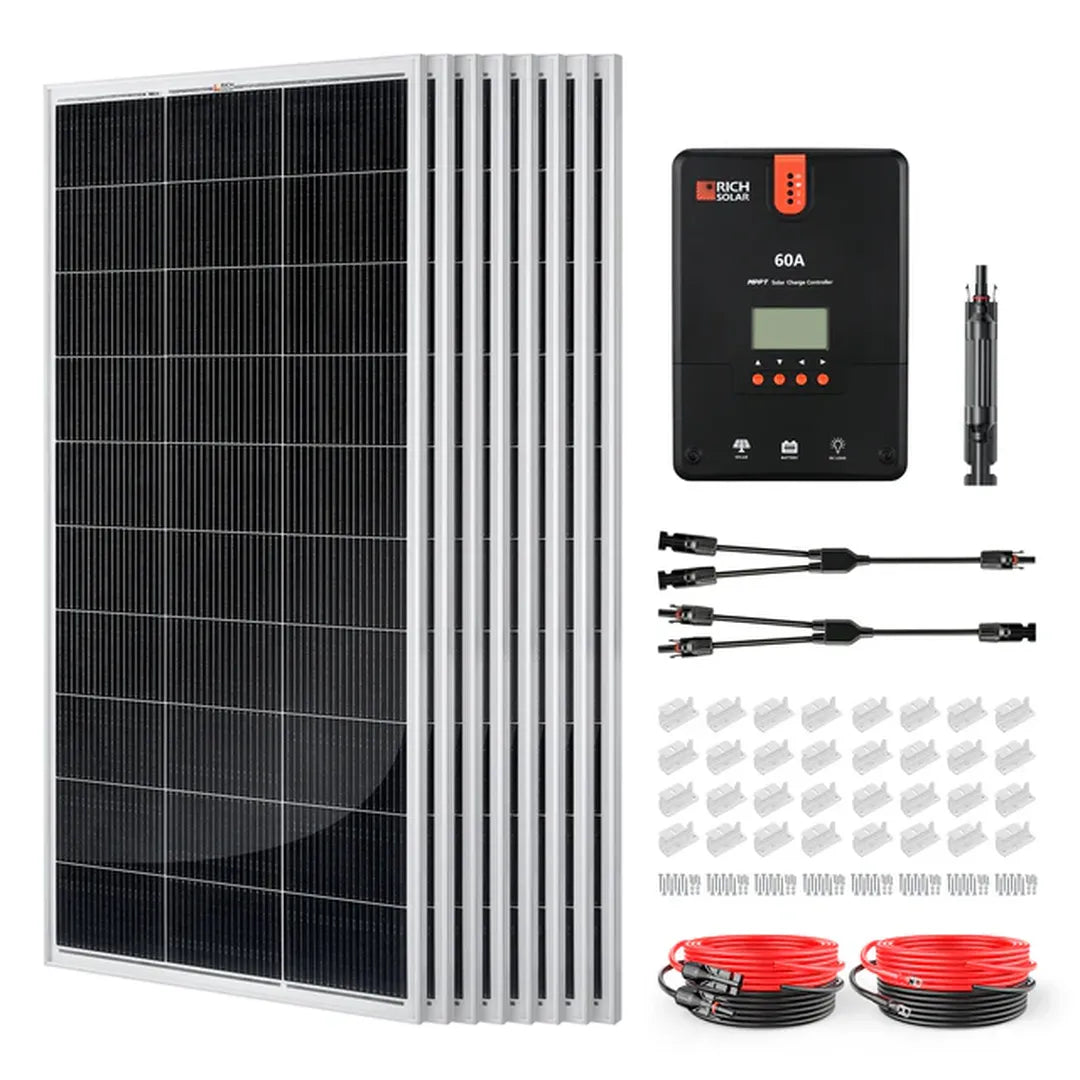

Kit Includes
- 8 x 200 Watt Monocrystalline Solar Panel (RS-M200)
- 1 x 60A MPPT Solar Charge Controller (RS-MPPT60)
- 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller (RS-20101)
- 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller (RS-20101)
- 1 x 10' #8 Gauge Battery Cable (Red), connects the controller to the battery (RS-810)
- 1 x 10' #8 Gauge Battery Cable (Black), connects the controller to the battery (RS-810)
- 8 x Mounting Z Brackets (one set of 4) (RS-ZB4C)
- 1 x 30A Inline Fuse Holder with Fuse (RS-SC30F)
- 1 x Y Branch Parallel Adapters (RS-T2)
MEGA 200 200 Watt Solar Panel
The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.
No. of Panels: 8 x MEGA 200 Watt Solar Panels
Wattage Per Panel: 200W
Total Wattage of Panels: 1600W
Features
- Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- 25-year limited warranty for power output; 10-year workmanship warranty.
Installation
- Easy installation and handling for various applications, including high-end off-grid and mobile applications.
- Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts.
- Compatible with on-grid and off-grid inverters.
Specification
Maximum Power (Pmax): 200W
Maximum Power Voltage (Vmp): 18.4V
Maximum Power Current (Imp): 10.9A
Open Circuit Voltage (Voc): 21.8V
Short Circuit Current (Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24.0 lb
Dimensions: 58.7 x 26.8 x 1.2 in
Downloads
Warranty
This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.
View RICH SOLAR Warranty Details
60 Amp MPPT Solar Charge Controller
Features
- Automatically detects 12V/24V/36V/48V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.
- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port for communicating with BT-1 Bluetooth module.
Specification
Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V (77°F), 145V (-13°F)
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: ≤0.26V
Discharge Circuit Voltage Drop: ≤0.15V
Operating Temperature: -31°F to 113°F
Max Terminal Size: <11mm
Overall Dimensions: 11.2 x 8.1 x 3.7 in
Net Weight: 7.94 lb
Downloads
60 Amp MPPT Solar Charge Controller
60 Amp MPPT Solar Charge Controller User Manual
Warranty
This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.
View RICH SOLAR Warranty Details
Why Choose RICH SOLAR
RICH SOLAR has been a leader in the off-grid solar industry since 2005, with a focus on bringing the world's best solar products to market while providing world-class customer service.
