Product Description

The RICH SOLAR 12V(14.4V) 20A LiFePO4 Battery Charger is designed for charging 12V LiFePO4 batteries with a 14.4V DC, 20A output. It plugs into 100–240V AC input power and supports 3-stage charging with pre-charge, constant current, and constant voltage operation.

Built with a tough aluminum shell and a quiet cooling fan, this charger is made for reliable battery charging while helping manage heat during use. LED indicator lights show standby, charging, full, or error conditions, while built-in protections help guard against over-temperature, reverse polarity, short circuit, and over-voltage.

Key Features

  • Outputs 14.4V DC, 20A. Plugs into 100-240V AC
  • Safely jump-starts BMS-protected dead batteries
  • Easy M10 terminals + 50A Anderson connector
  • LED lights indicate standby, charging, full, or error conditions
  • Tough aluminum shell with a quiet, heat-busting fan
  • 3-stage charging: pre-charge, constant current, constant voltage.
  • Packed with protection: over-temperature, reverse polarity, short circuit, and over-voltage

Specifications

  • Input Voltage: 100V to 240V AC; 47Hz to 63Hz
  • Max Input Current: 4A
  • Output Voltage: 14.4V±0.2VDC
  • Output Current: 20A
  • Temperature Range: Operating: -20°C to 40°C / -4°F to 104°F; Storage: -40°C to 70°C / -40°F to 158°F

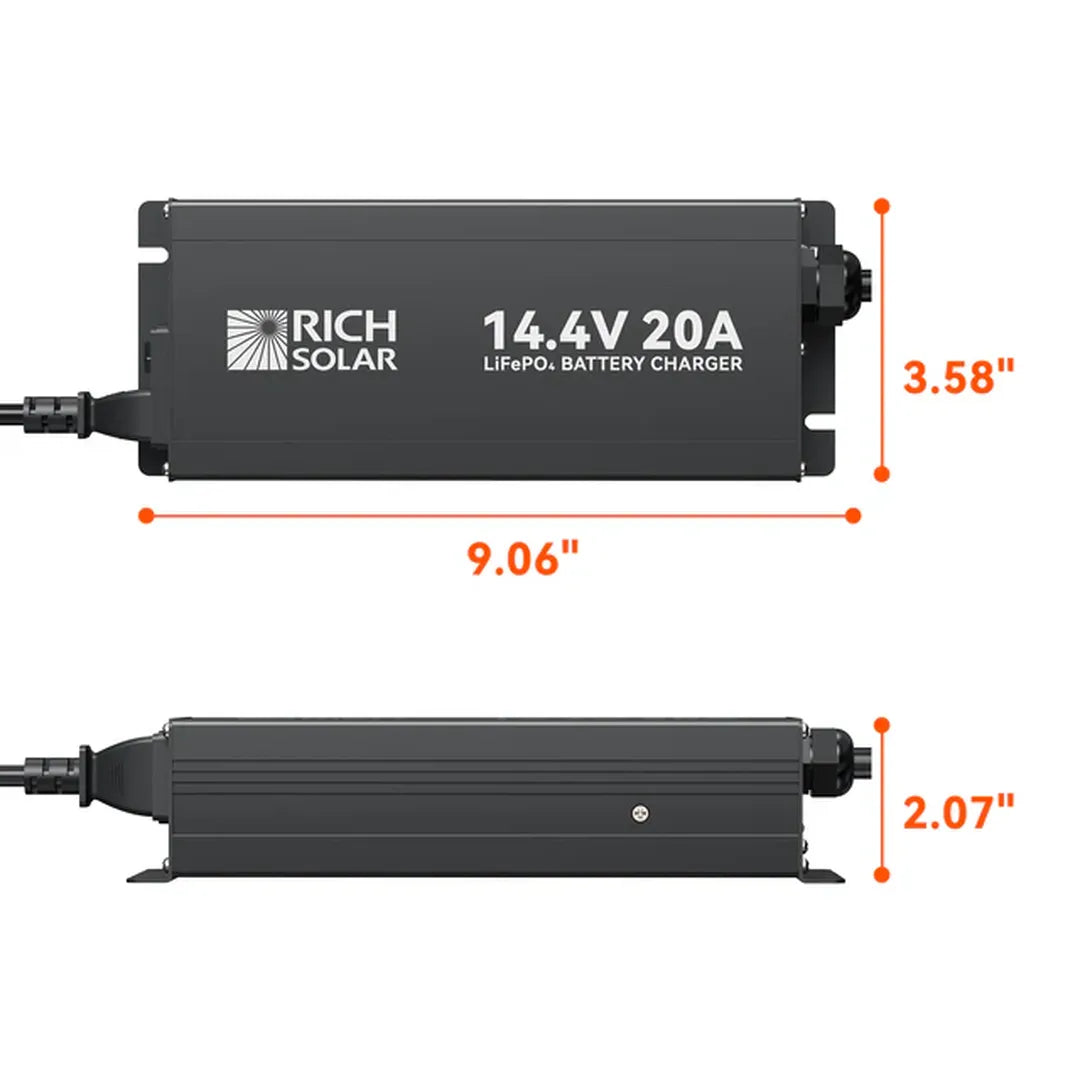

  • Dimensions: 9.06x3.58x2.07in / 230x91x52.5mm
  • Net Weight: 3.75lb / 1.70kg

Downloads

Specifications

Manual

Warranty

This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.

View RICH SOLAR Warranty Details
