Product Description

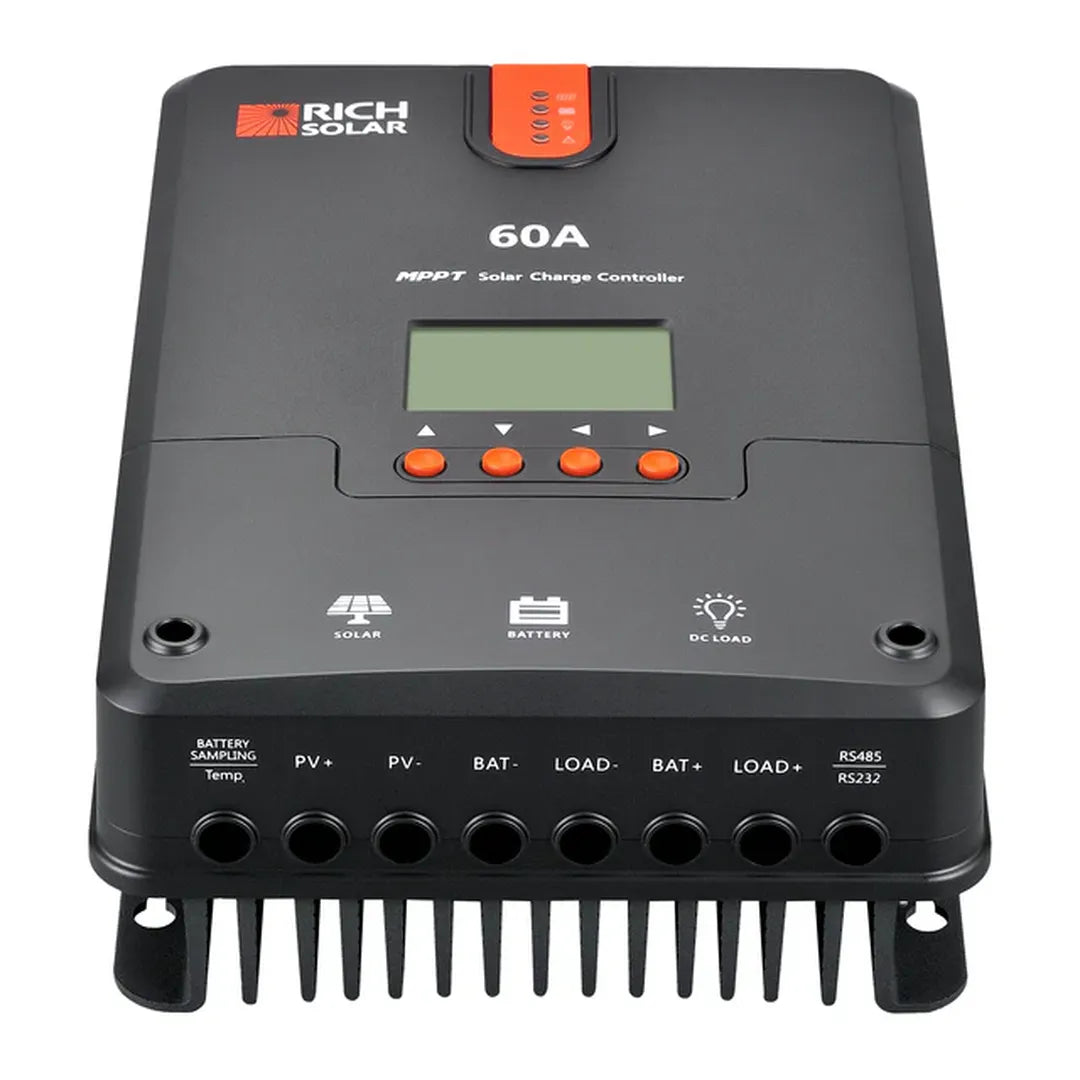

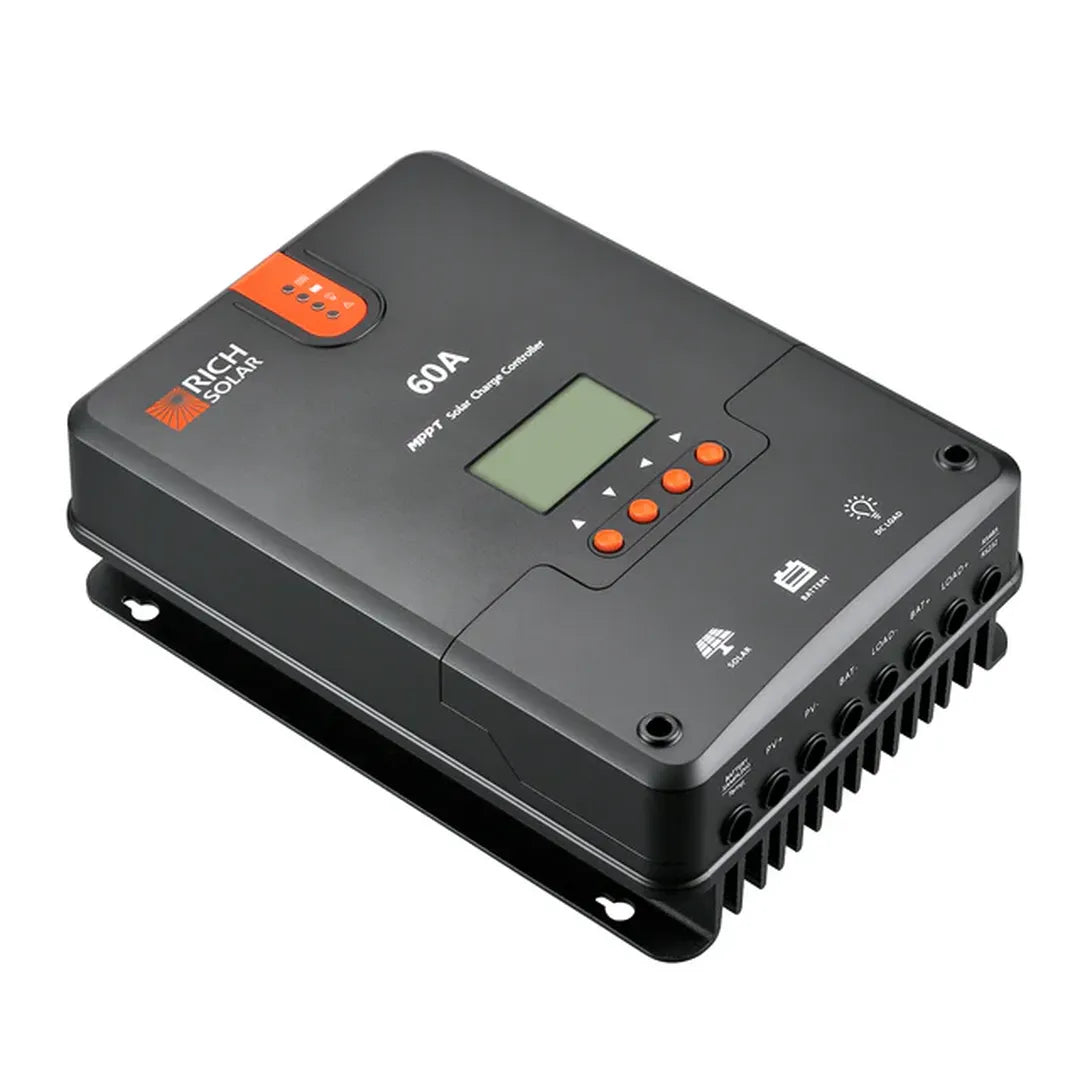

The RICH SOLAR 60 Amp MPPT Solar Charge Controller is designed to regulate solar charging for 12V, 24V, 36V, and 48V DC battery systems. It is compatible with sealed, gel, flooded, and lithium deep cycle batteries, making it a flexible controller for solar power setups.

This charge controller uses MPPT technology with tracking efficiency up to 99% and peak conversion efficiency of 98%. It includes an LCD screen, multiple LED indicators, diverse load control, electronic protection features, and a die-cast aluminum design for efficient heat dissipation.

Key Features

  • Automatically detects 12V/24V/36V/48V DC system voltages.
  • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
  • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
  • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
  • Features diverse load control; also capable of charging over-discharged lithium batteries.
  • Die-cast aluminum design allows for efficient heat dissipation.
  • RS232 port for communicating with BT-1 Bluetooth module.

Specifications

  • Rated Battery Current: 60A
  • Rated Load Current: 20A
  • Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
  • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
  • Charge Circuit Voltage Drop: ≤0.26V
  • Discharge Circuit Voltage Drop: ≤0.15V
  • Operating Temperature: -31°F to 113°F
  • Max Terminal Size: <11mm
  • Overall Dimensions: 11.2 x 8.1 x 3.7 in
  • Net Weight: 7.94 lb
