Product Description

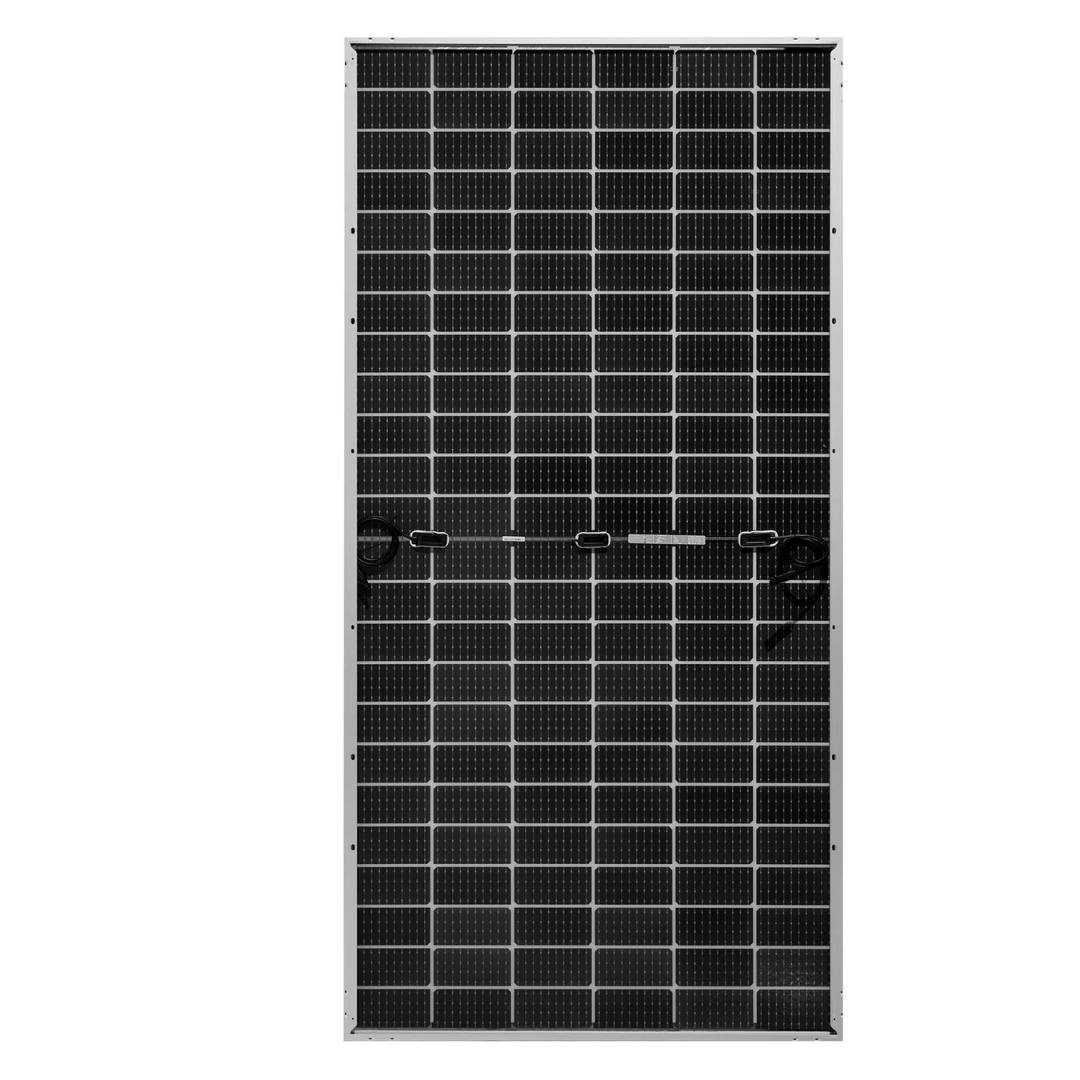

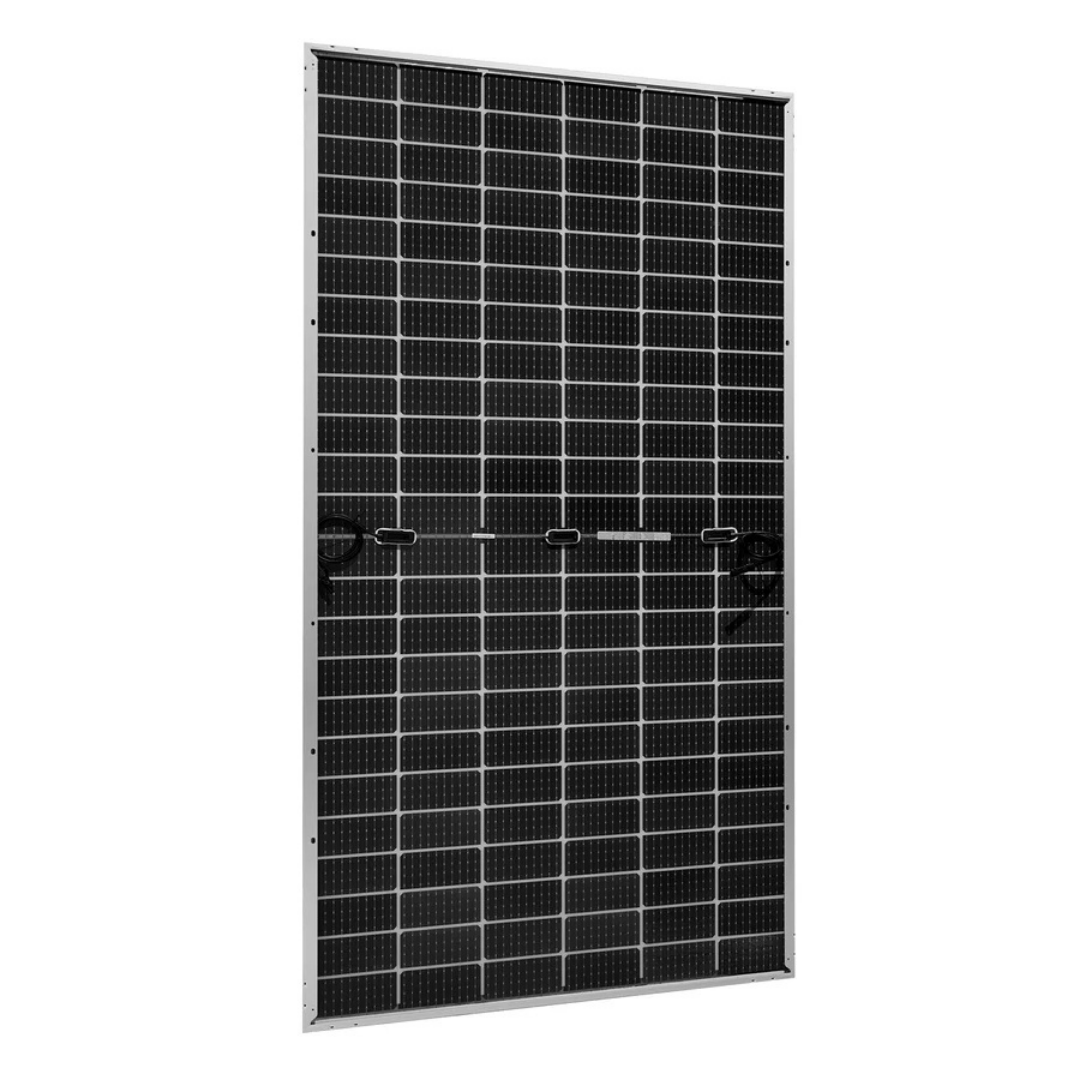

The RICH SOLAR MEGA 580 BIFACIAL is a 580-watt solar panel designed for residential, agricultural, commercial, grid-tie, and off-grid solar applications. Generating 580W of power at 24V, it helps deliver strong solar output while reducing space, system complexity, and cost.

Built with TOPCON technology, a lightweight anodized aluminum frame, and high-transmission anti-reflective tempered glass, this panel is designed for durable outdoor performance. It includes pre-drilled mounting holes, quick-connect solar connectors, and waterproof built-in components for easier installation.

Key Features

  • 16 busbar solar cell configuration
  • TOPCON technology
  • Lightweight anodized aluminum frame
  • High transmission, AR (anti-reflective) coated tempered glass
  • Plug-and-play junction box
  • Industry-standard quick-connect cables (Solar Connectors) work in series or parallel
  • Excellent low-light performance on cloudy days, mornings, and evenings
  • Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
  • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation

  • Easy installation and handling for various applications (high-end off-grid and mobile applications, on-grid solar system)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty

Warranty: This product is covered by the official RICH SOLAR manufacturer limited warranty. Warranty terms, coverage period, and claim requirements are provided by RICH SOLAR.

View RICH SOLAR Warranty Details

Built-in Components

  • Panel leads (pair): 2 feet long each
  • IP68-rated waterproof junction box
  • IP67-rated waterproof solar connectors
  • Bypass diodes are built into the junction box

Specifications

  • Maximum Power(PMAX): 580 W
  • Maximum Power Voltage(VMP): 42.7 V
  • Maximum Power Current(IMP): 13.6 A
  • Open Circuit Voltage(VOC): 51.4 V
  • Short Circuit Current(ISC): 14.3 A
  • Maximum System Voltage: 1500 VDC
  • Module Efficiency η m (%): 22.5%
  • Max Series Fuse Rating: 30 A
  • Weight: 68.8 lb (31.2 kg)
  • Dimensions: 89.7 Ă— 44.7 Ă— 1.2 in

DOWNLOADS

Why Choose RICH SOLAR

RICH SOLAR has been a leader in the off-grid solar industry since 2005, with a focus on bringing the world's best solar products to market while providing world-class customer service.

Free Shipping
U.S. Local Warehouse
Lifetime Service

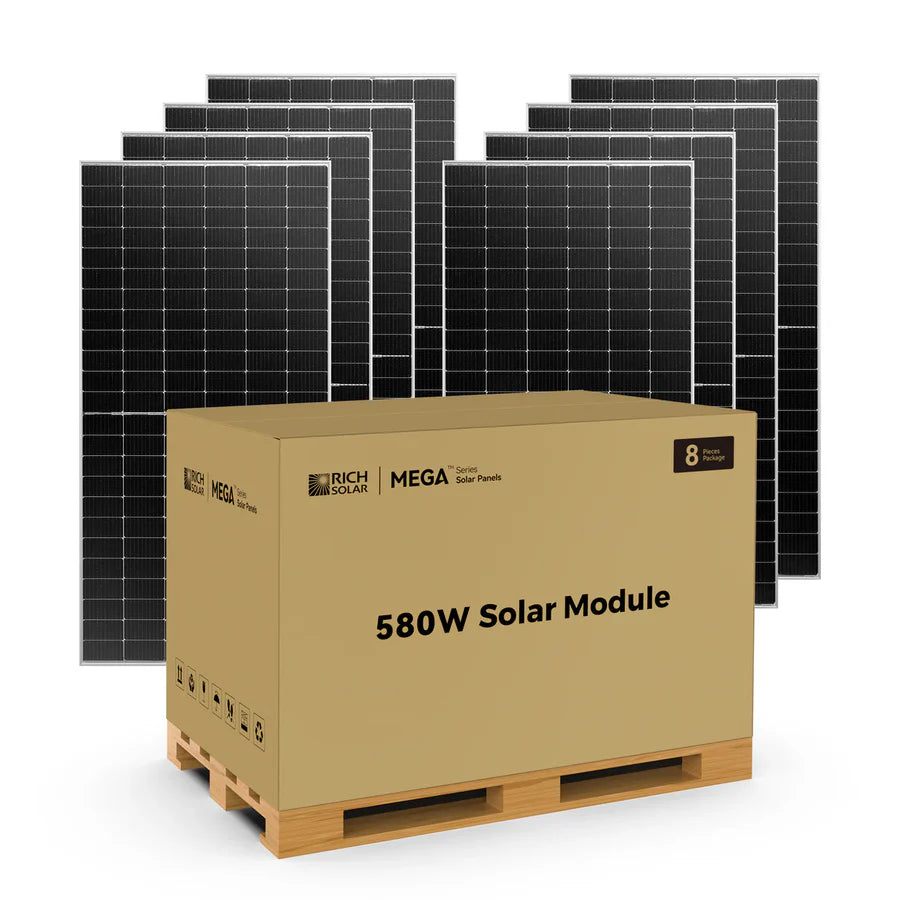

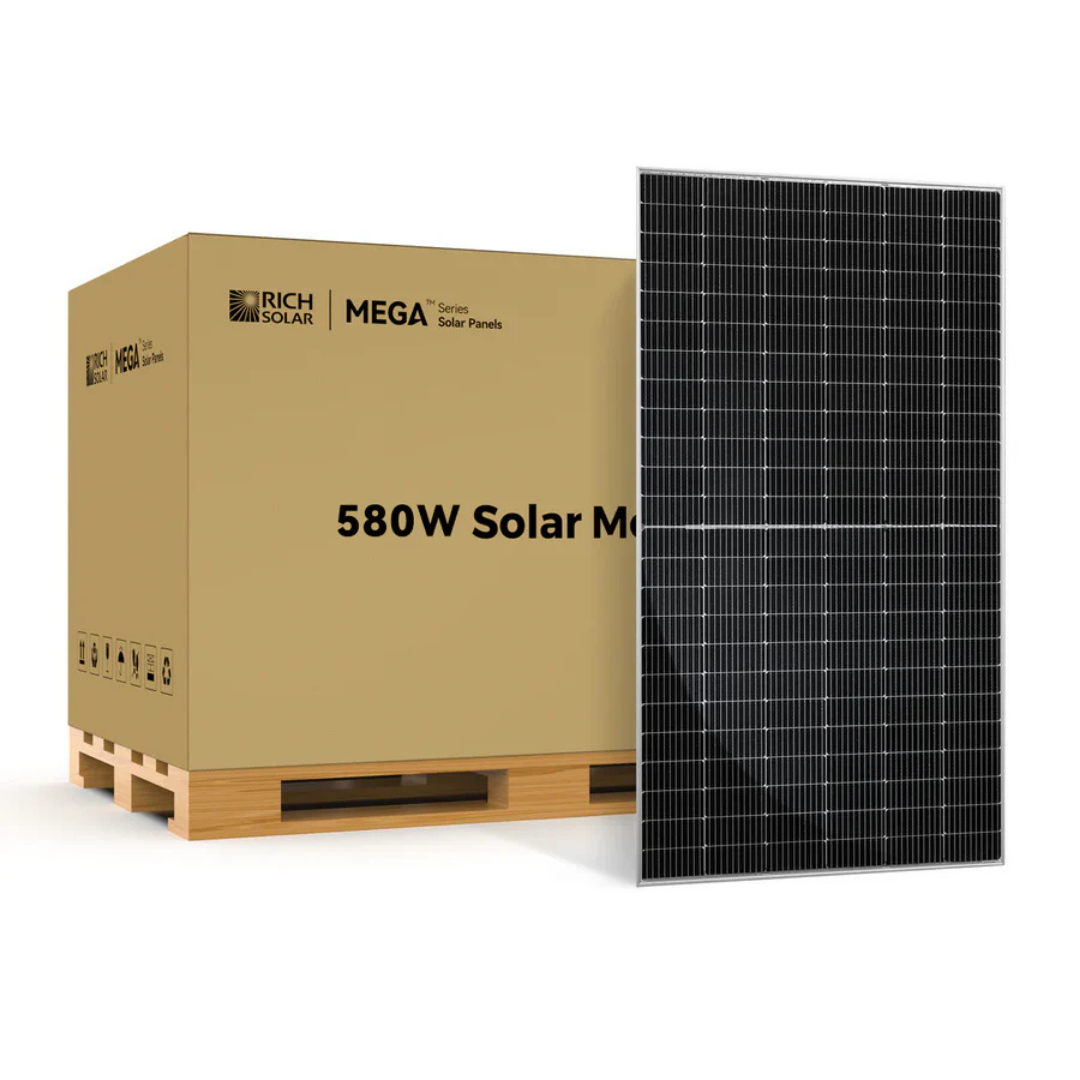

PALLET SHIPPING ONLY!

For other quantities, contact our sales team at 1-800-831-9889 or sales@richsolar.com.

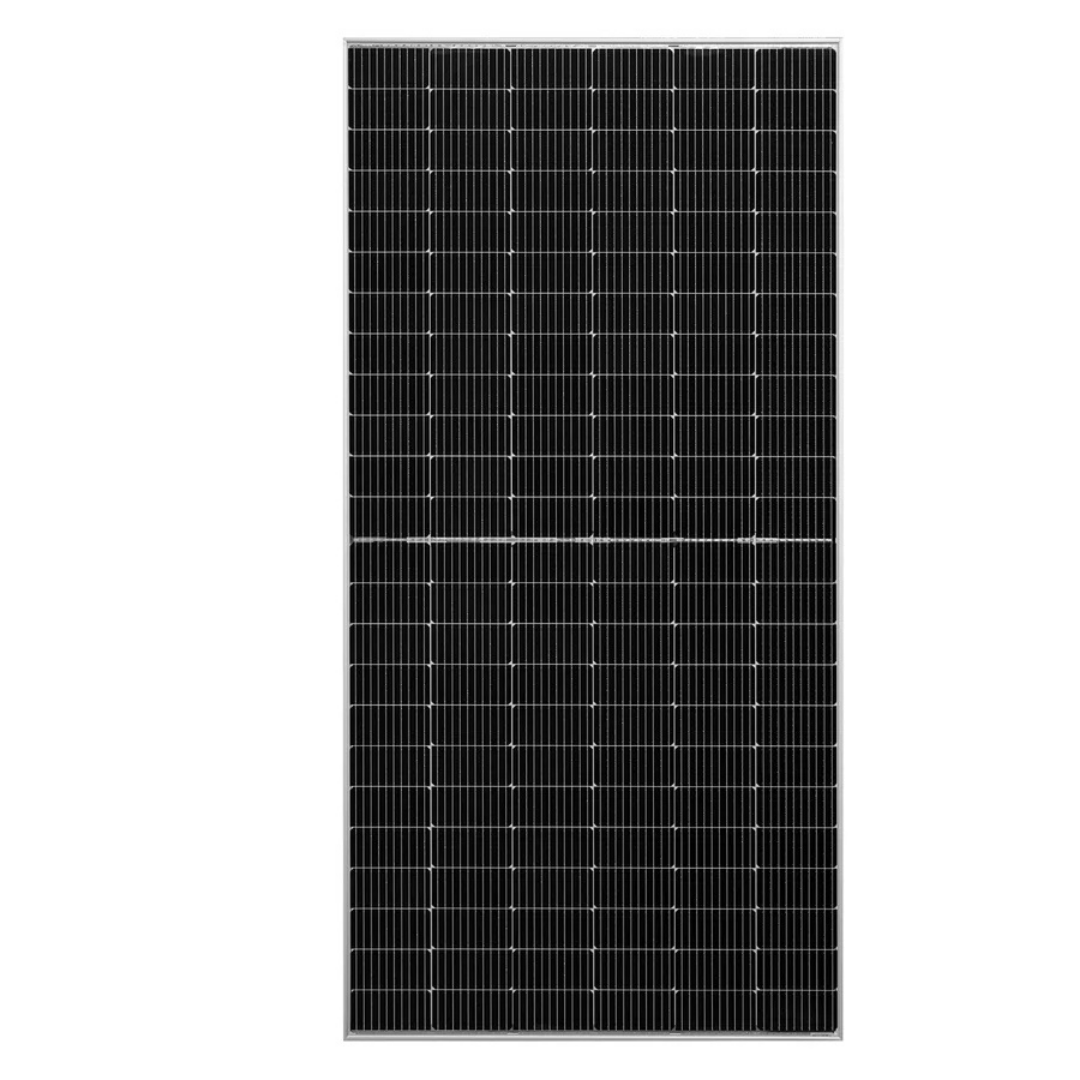

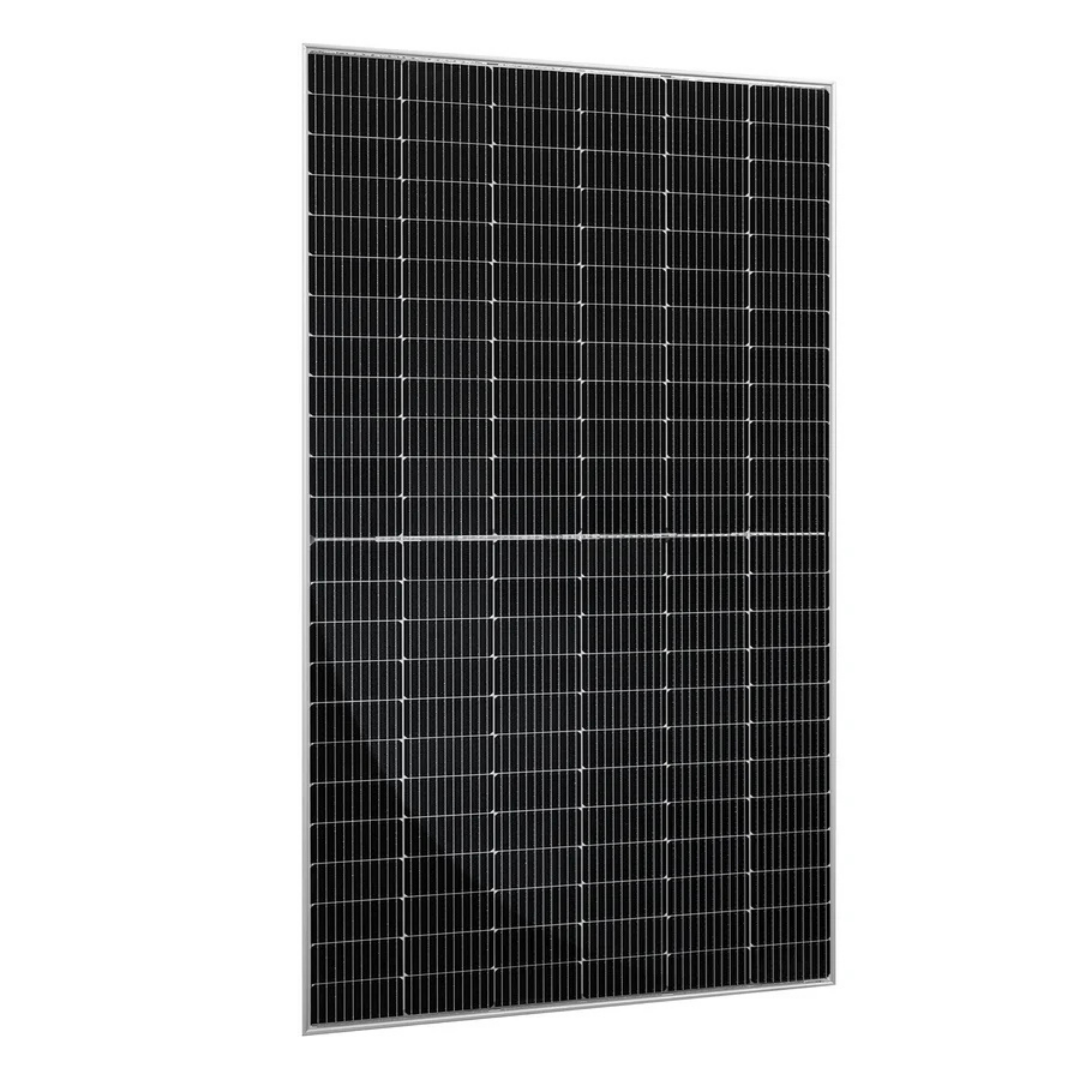

The MEGA 580 solar panel is engineered to deliver maximum solar output with minimal space, system complexity, and cost. Generating 580W of power at 24V, it’s a reliable solution for residential, agricultural, and commercial off-grid applications. Built with a lightweight anodized aluminum frame and anti-reflective tempered glass, it offers exceptional durability and performance, even in harsh weather conditions.
